Home off hybrid-inverterDeye SUN-20K-SG05LP3-EU-SM2 20kW Three Phase Hybrid Solar Inverter

-2% Sale

Deye SKU: DEYE-SUN20K-SG05LP3-EU-SM2

In Stock (50 units)

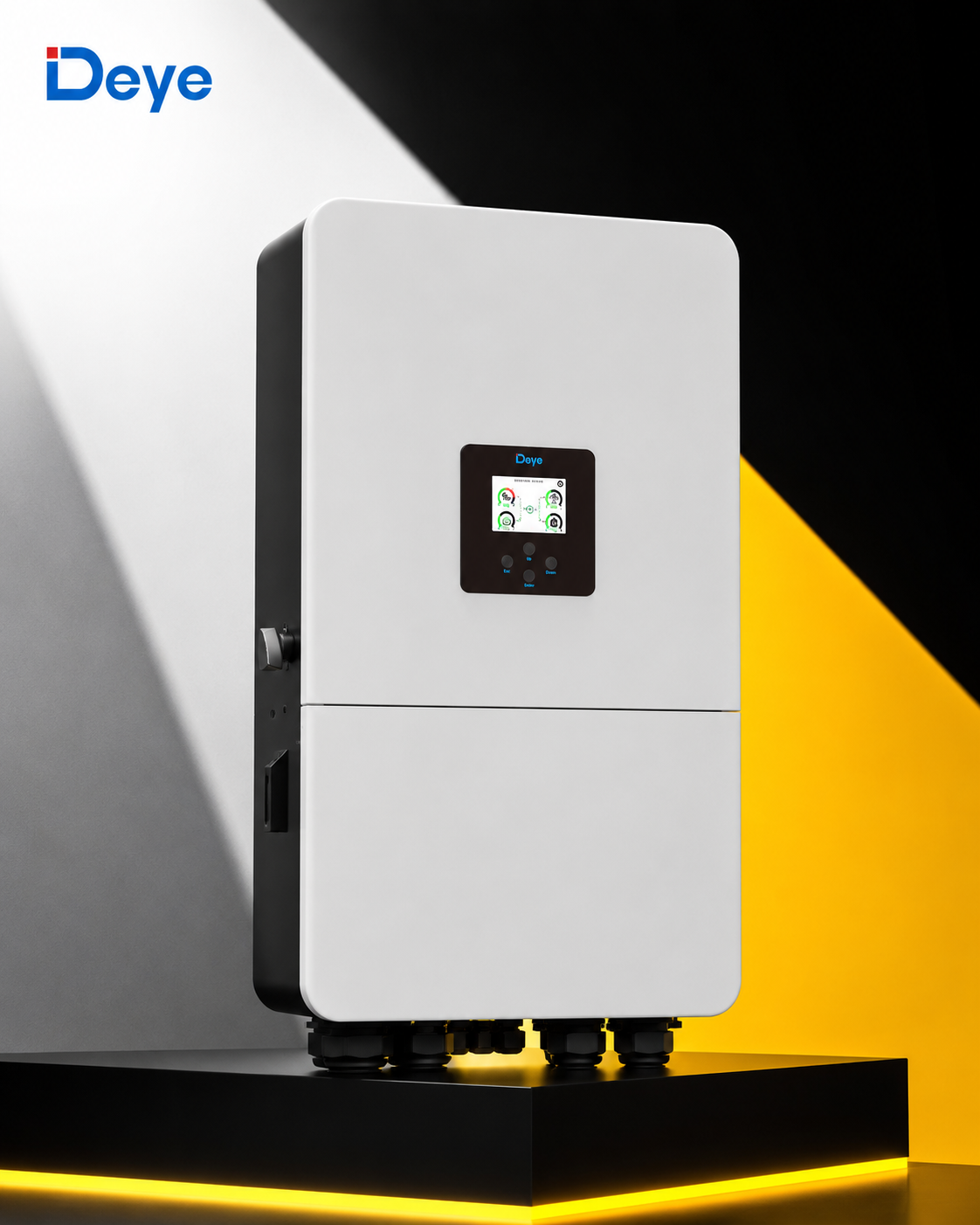

Deye SUN-20K-SG05LP3-EU-SM2 20kW Three Phase Hybrid Solar Inverter

Name: Deye SUN-20K-SG05LP3-EU-SM2 20kW Three Phase Hybrid Solar Inverter
Brand: Deye
SKU: DEYE-SUN20K-SG05LP3-EU-SM2
Price: 401899 BDT
Availability: InStock

0 Rating (0 customer reviews)

৳ 401,899৳ 408,998

Premium 20kW three-phase hybrid solar inverter with dual MPPT, dual battery input, 97.6% efficiency, IP65 protection, and smart battery management.

১০০% জেনুইন মালামালের নিশ্চয়তা

Nationwide Courier Insured

5 Years Replacement Warranty

30-Day Technical Call Support

Quantity

50 available

Buy Now on WhatsApp / হোয়াটসঅ্যাপে সরাসরি কিনুন

Product Technical Description & Specifications

Product Overview

The Deye SUN-20K-SG05LP3-EU-SM2 is a high-performance 20kW three-phase hybrid solar inverter designed for commercial, industrial, and large residential energy storage systems. It supports both Lead-acid and Lithium-ion batteries with intelligent BMS communication and dual battery input for greater storage flexibility. Featuring dual MPPT trackers, support for up to 40kW PV access power, 32000W PV input power, and 97.6% maximum efficiency, this inverter delivers outstanding energy harvesting and reliable operation. Intelligent air cooling, IP65 protection, and comprehensive safety features ensure dependable indoor and outdoor installation. The inverter also supports optional WiFi, RS485, CAN, and remote monitoring, making it ideal for advanced solar energy management.

Zener Authenticity Promise: All sitemarks, models, and technical statistics are registered with the factory and verified in our physical laboratory before sale.

Data Specifications

Weight51.9 kg

CoolingIntelligent Air Cooling

Humidity0-100%

Warranty5 Years / 10 Years

Dimensions456 × 750 × 268.5 mm

Noise Level<60 dB

Battery TypeLead-acid or Lithium-ion

Grid Voltage220/380V, 230/400V

CommunicationWiFi, RS485, CAN

Inverter TypeThree Phase Hybrid

MPPT Trackers2

Battery Inputs2

Grid Frequency50/60 Hz

Max Efficiency97.6%

Rated AC Power20000 W

Euro Efficiency97.0%

MPPT Efficiency>99%

Maximum Altitude3000 m

Rated AC Current30.4/29 A

Rated PV Voltage550 V

Start-up Voltage160 V

Strings per MPPT2+2

Surge ProtectionType II DC / Type II AC

Charging StrategySelf-adaption to BMS

Protection RatingIP65

MPPT Voltage Range160-650 V

Max PV Input Power32000 W

Maximum AC Current33.4/31.9 A

Rated Output Power20 kW

Max PV Access Power40000 W

Max Charging Current350 A

Max PV Input Current36+36 A

Max PV Input Voltage800 V

Battery Voltage Range40-60 V

Operating Temperature-40°C to +60°C

Maximum Apparent Power22000 VA

Max Discharging Current350 A

Max Short Circuit Current54+54 A
